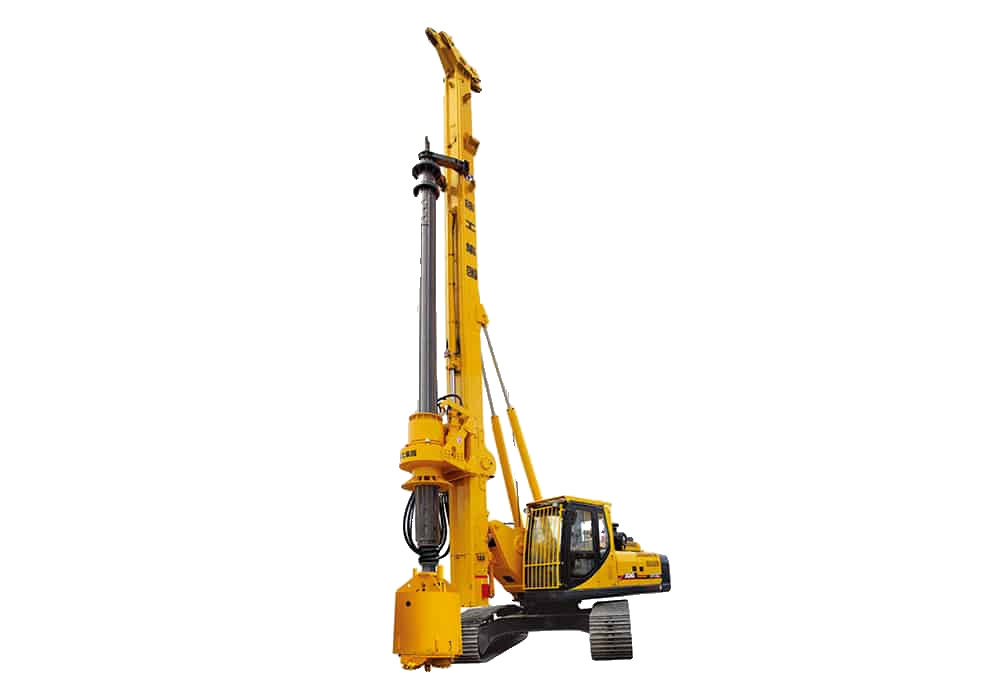

XCMG XR280D

XCMG XR280D Rotary Drilling Rig widely used in the boring operation of the bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks, and high-rise buildings.

Performance Characteristics:

* The special hydraulic chassis for the rotating drill with an extensible crawler is provided with excellent stability and is convenient to transport. The imported Cummins turbo—supercharged engine (meeting EU—III standard) is powerful, and has sufficient power reserve, which can be operated in the plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best;

* The load—sensing technique is used in the hydraulic system to make it more efficiently and save more energy;

* The patented parallelogram articulation mechanism can work in a large area. The drill mast, which is designed inbox structure and made of the materials with high strength, has good rigidity and anti-distortion, guaranteeing the drilling accuracy. The hinge is provided with the bearing exempt from lubrication and can work freely. The slag can be discharged at any angle due to 3600 lifting and revolving;

* The intellectual controlling system, CAN bus and PLC with self-intellectual property right are used, including the automatic and manual regulation of the perpendicularity of the drill mast, automatic display of the drilling depth, automatic rotation positioning control, and intelligent fault diagnosis control;

* The machine adopts a single row rope for the main winch to figure out the wear of steel rope. extend the life—span. And high reliability;

* With infrared camera for observing the main winch, Manipulator can observe the state of steel rope at day and night in the cab;

* Standard centralized lubricating system, allowing easier maintenance;
